Multi-RF capable
Board to FPC connector

Contact Us >>​

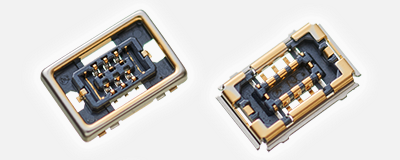

hero_0828_con



Features
● Good SI / EMI / EMS characteristics with high frequency application
● Tough Contact structure achieves high contact reliability and high retention force
● With metal shield structure, tough against shock impact

Basic Specifications

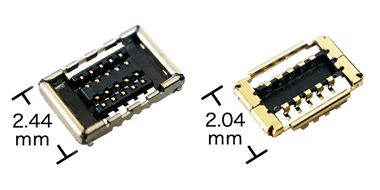

RF35
rf35

● Terminal pitch: 0.35 mm
● Mated height: 0.6 mm
● Frequency: ～15 GHz
● Number of pins: 10 contacts

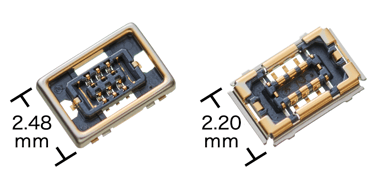

RF4
rf4_0828

● Terminal pitch: 0.35 mm
● Mated height: 0.65 mm
● Frequency: ～15 GHz
● Number of pins: 6 contacts

* Shape may differ from the actual product.

1. Good SI / EMI / EMS characteristics with high frequency application
Shielding Socket and Header electromagnetic all around and good EMI characteristics.

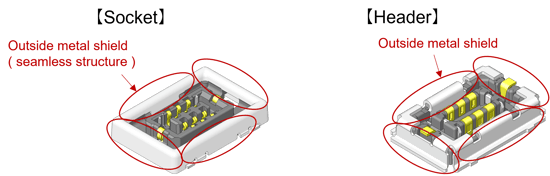

RF4 shield structure

en_images_01

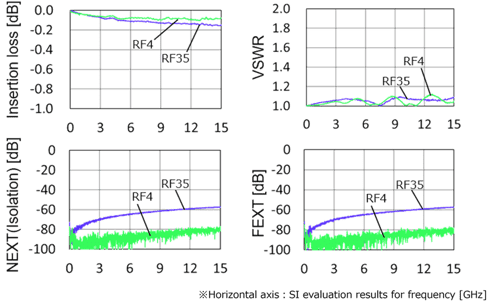

Transmission characteristics

en_images_02-2

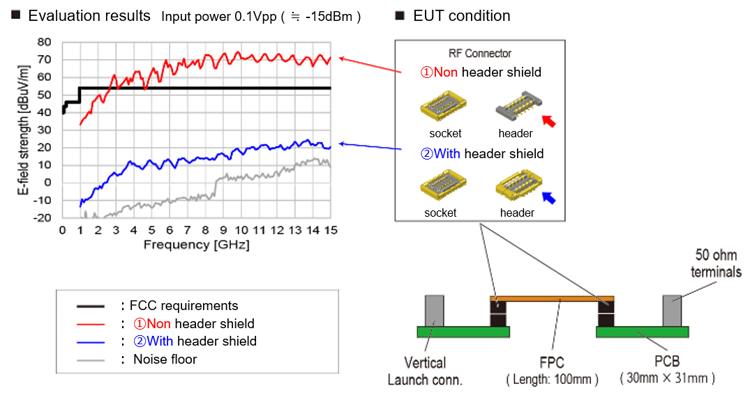

EMI characteristics evaluation results (RF35)

en_images_03

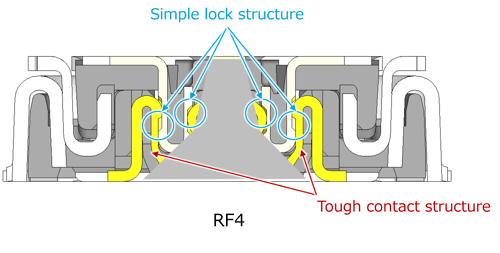

2. Tough Contact structure achieves high contact reliability and high retention force
High removal force by simple lock structure
High reliability “TOUGH CONTACT”
For more information about our “TOUGH CONTACT”, click here.

en_images_04



3. With metal shield structure, tough against shock impact
Both the socket and header have a robust structure with exposed metal fittings to prevent damage to the flange

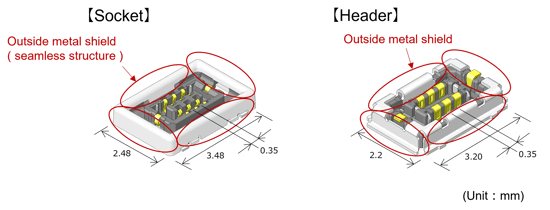

RF4 shield structure

en_images_05



― Applications ―

Smartphone / Tablet / Laptop / Router etc.

appli_01

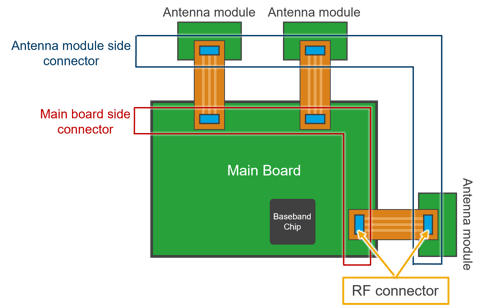

Antenna module to Main board connection
5G millimeter wave communication antenna /
UWB (Ultra Wide Band) communication antenna

en_images_06

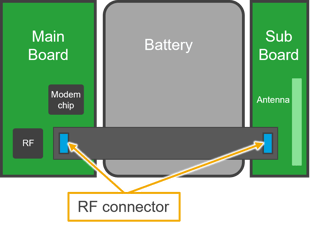

RF signal board-to-board connection

en_images_07



FPC Antenna

en_images_08



FPC Antenna (UWB)

en_images_09



Product
Number		 Socket/
Header		 Number
of pins		 Mated
Height		 Packing
Inner carton		 Packing
Outer carton
RF35
rf35_socket
rf35_header_300		 AXG3A1012 Socket 10 0.6 mm 15,000 pieces
(1-reel)		 30,000 pieces
AXG4A1012 Header 10 0.6 mm 15,000 pieces
(1-reel)		 30,000 pieces
RF4
rf4_socket_300
rf4_header_300		 AXG3B0602 Socket 6 0.65 mm 15,000 pieces
(1-reel)		 30,000 pieces
AXG4B0602 Header 6 0.65 mm 15,000 pieces
(1-reel)		 30,000 pieces
