Transparent Conductive Film FineX (Fine cross) Applications

Transparent Heater

Quickly removes fogging and icing, contributing to the maintenance of functionality and improvement of suitability.

What is a Transparent Heater?

A device that generates heat while maintaining transparency.

Panasonic proposes
Transparent Conductive Film FineX (Fine Cross) for the development of Transparent Heaters that contribute to maintaining equipment functionality and user comfort.

Transparent conductive film
FineX (Fine Cross) is... >>

Are you struggling with these design problems?

Want to achieve anti-fogging and snow-melting for transparent areas and sensing devices, but…

Don't want to compromise on visibility, design, or functionality!

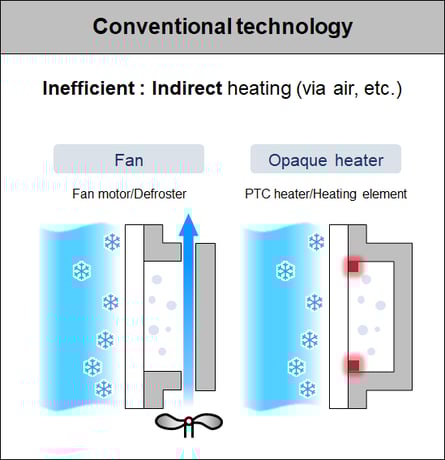

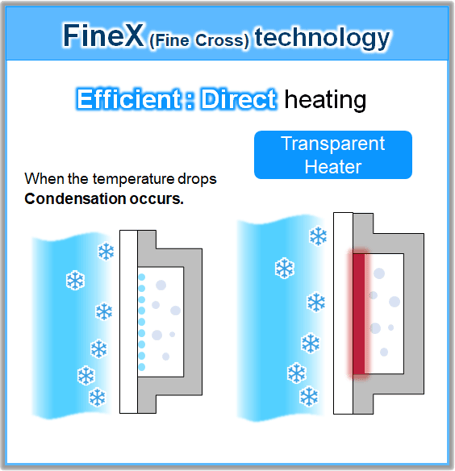

How can we efficiently address these problems?

What problem does Panasonic’s
Transparent Conductive Film FineX (Fine Cross) solve?

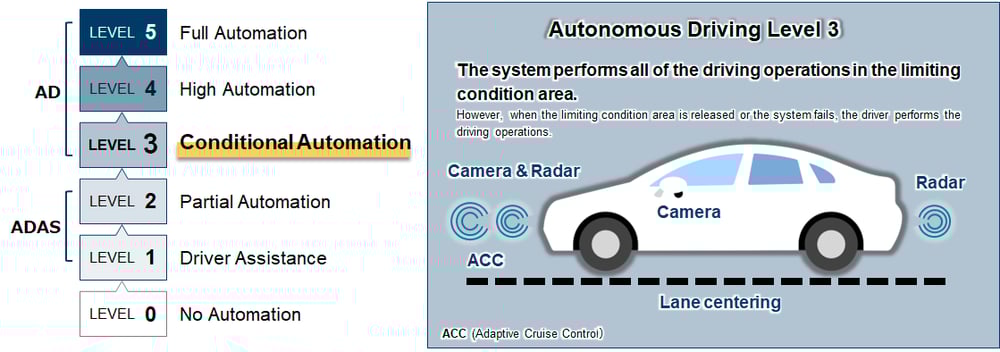

Sensing technology is essential for Advanced Driver Assistance Systems (ADAS) and Autonomous Driving (AD) systems.
With the introduction of Autonomous Driving Level3 vehicles on the market, it has become a problem to ensure the proper operation of various sensors regardless of weather or driving conditions.

To ensure that ADAS operates properly from the moment the engine is started, transparent heaters with high transmittance and rapid heating are required for anti-fogging and snow melting measures.

Features
Panasonic’s Transparent Conductive Film FineX (Fine Cross)

1
Excellent
Heating
performance

2
High
Visibility

3
High
Transmittance
(Infrared and
millimeter wave bands)

4
High
Design
flexibility

5
Support for
Curved design,
various shapes

Transparent Conductive Film
FineX (Fine Cross) Features >>

Feature 1

Excellent
Heating
performance

Rapid and uniform heating
due to low resistance and proprietary wiring design.

Feature 2

High
Visibility

High transparency due to fine wiring allows for direct heating without compromising design.

Feature 3

High
Transmittance

High transmittance in the infrared and millimeter wave regions is ensured by proprietary metal mesh and wiring design.

Feature 4

High
Design flexibility

Panasonic's proprietary methods and design know-how provide high flexibility in wiring patterns and contribute to set design.

Feature 5

Support for
Curved design
and
various shapes

Achieve a uniform surface temperature on curved and various shapes by using film base materials and proprietary wiring designs.

Fundamental Specifications
Panasonic’s Transparent Conductive Film FineX (Fine Cross)

Item	Fundamental Specifications
Wiring Line Width	2 um or more
Transmissivity	89 %^*1
Aperture ratio	96 %
Sheet Resistance	2 Ω/sq.
Base material	PET / PC
Bendability	R2 mm or more ^*2

*1: Including film base material.
*2: Film only.

Comparison of Fundamental Specifications:

FineX (Fine Cross) vs. Conventional Etching Method >>

Panasonic’s
Transparent Conductive Film
FineX (Fine Cross)
Transparent Heater Applications

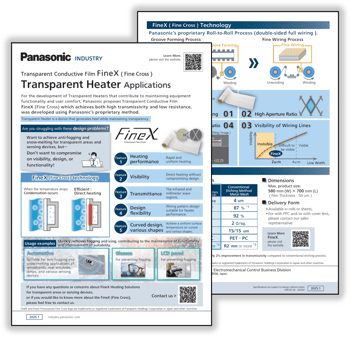

Download Leaflet (Free) >>

Usage examples
Transparent Heater Transparent Conductive Film FineX (Fine Cross)

Automotive

Suitable for anti-fogging and snow-melting applications of windshields, rear windows, lamps, and various sensing devices to accurately understand driving conditions.
FineX contributes to visibility, safety, and stable sensing in Automotive designs.

IThermal Management

IEnsuring Sensing Functionality

Glasses

Helpful for maintaining visibility and preventing fogging in eyeglasses or wearables, while enhancing comfort and clarity.

LCD panel

This technology aids operability and responsiveness in low-temperature environments, preventing fogging, condensation, and freezing caused by sudden temperature changes.
It helps avoid delays in panel operation, degradation of image quality, and potential equipment malfunctions.

Please feel free to contact us if you have any questions or concerns about
FineX Heating Solutions for transparent areas or sensing devices.
