Transparent Conductive Film

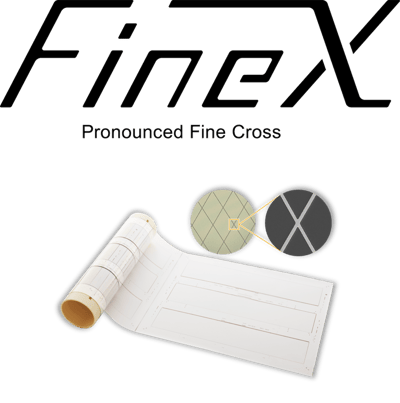

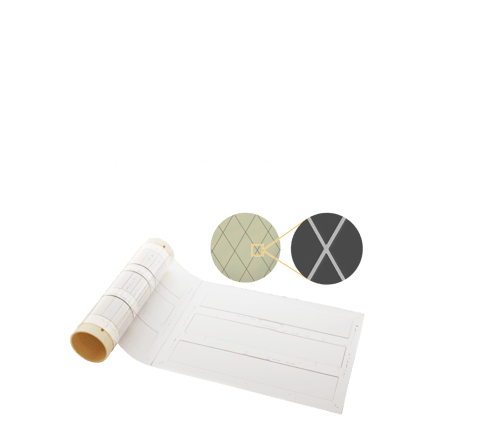

FineX (Fine Cross)
Transparent Conductive Film
FineX and FineX Pronounced Fine Cross logo are trademarks or registered trademarks of Panasonic Holdings Corporation in Japan and other countries.
IPanasonic’s Transparent Conductive Film FineX (Fine Cross) is …
IPanasonic’s Transparent Conductive Film is …
The metal mesh type transparent conductive film, which achieves both high transmissivity and low resistance, was developed using Panasonic's proprietary method.
Since it can conduct electricity in transparent areas where visible light transmission is required, the following can be achieved:
✓Generation of capacitance
✓Current flow to the device
✓Generation of heat
The metal mesh type transparent conductive film, which achieves both high transmissivity and low resistance, was developed using Panasonic's proprietary method.
Since it can conduct electricity in transparent areas where visible light transmission is required, the following can be achieved:
✓Generation of capacitance
✓Current flow to the device
✓Generation of heat
IFineX (Fine Cross) Features
FineX is applied in various applications.
ITransparent Conductive Film Features
Transparent Conductive Film is applied in various applications.
01
High
Transmissivity
―――――――――――
High transmittance is achieved through fine wiring, making it suitable for installations that require transparency and visibility .
02
Low
Resistance
―――――――――――
Low resistance is attained by utilizing a high wiring aspect ratio, essential for developing applications that need rapid heating and efficient current flow .
03
Design
Flexibility
―――――――――――
Panasonic offers a range of sizes and complex pattern designs, leveraging our expertise and mass production experience to support design and development.
04
Bendability
―――――――――――
Using film-based materials and fine wiring allows for bendability, facilitating installation in areas requiring curved or intricate shapes.
IFineX (Fine Cross) Fundamental Specifications
ITransparent Conductive Film Fundamental Specifications
| Item | Fundamental Specifications |
|
Wiring Line Width |
2 um or more |
|
Transmissivity |
89 %*1 |
|
Aperture ratio |
96 % |
|
Sheet Resistance |
2 Ω/sq. |
|
Base material |
PET / PC |
|
Bendability |
R2 mm or more *2 |
*1: Including film base material.
*2: Film only.
| Item | Fundamental Specifications |
|
Wiring Line Width |
2 um or more |
|
Transmissivity |
89 %*1 |
|
Aperture ratio |
96 % |
|
Sheet Resistance |
2 Ω/sq. |
|
Base material |
PET / PC |
|
Bendability |
R2 mm or more *2 |
*1: Including film base material.
*2: Film only.
IFineX (Fine Cross) technology
The technology could be achieved by Panasonic's proprietary method.
IFineX technology
The technology could be achieved by Panasonic's proprietary method.
Contribute to an affluent society
