Transparent Conductive Film FineX (Fine cross) Applications

Transparent PCB

High visibility and flexibility, providing a fusion of design and functionality.

What is a Transparent PCB?

A highly transparent circuit board for mounting electronic components.

Panasonic proposes
Transparent Conductive Film FineX (Fine Cross) for the development of Transparent PCBs that contribute to improving equipment functionality and user comfort.

Transparent conductive film
FineX (Fine Cross) is... >>

Are you struggling with these design problems?

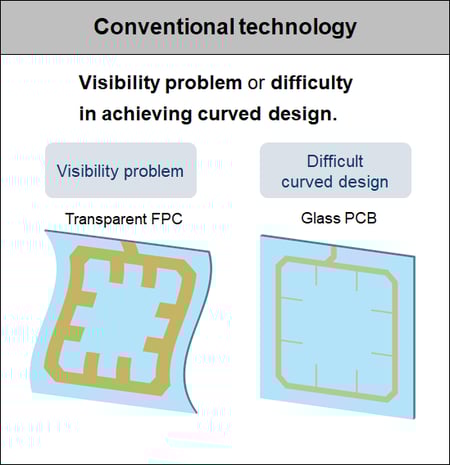

Want to achieve transparent electronics by mounting components on glass or areas where you want to maintain design, but… 　

Don't want to compromise on visibility, design, or functionality!
How can we efficiently address these problems?

What problem does Panasonic’s
Transparent Conductive Film FineX (Fine Cross) solve?

Features
Panasonic’s Transparent Conductive Film FineX (Fine Cross)

1
High
Visibility

2
High
Design flexibility
(Shapes, sizes)

3
Flexible support for
Curved design
(2.5D)

Transparent Conductive Film
FineX (Fine Cross) Features >>

Feature 1

High
Visibility

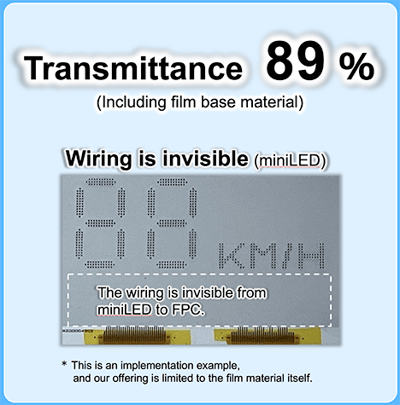

The wiring is invisible due to fine wiring and blackening treatment.

Feature 2

High
Design
flexibility

Shapes and sizes are suitable for requirements due to the film base material.

Feature 3

Flexible support for
Curved surfaces

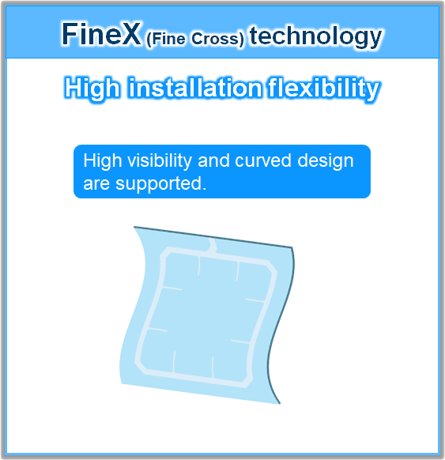

It accommodates designs featuring curved surfaces using film-based materials.
FineX enables installation within glass for various vehicle applications and more.

Fundamental Specifications
Panasonic’s Transparent Conductive Film FineX (Fine Cross)

Item	Fundamental Specifications
Wiring Line Width	2 um or more
Transmissivity	89 %^*1
Aperture ratio	96 %
Sheet Resistance	2 Ω/sq.
Base material	PET / PC
Bendability	R2 mm or more ^*2

*1: Including film base material
*2: Film only.

Comparison of Fundamental Specifications:

FineX (Fine Cross) vs. Conventional Etching Method >>

Panasonic’s
Transparent Conductive Film
FineX (Fine Cross)
Transparent PCB Applications

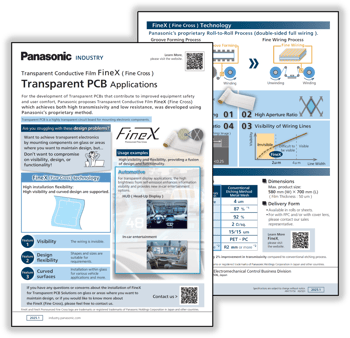

Download Leaflet (Free) >>

Usage examples
Transparent PCB Transparent Conductive Film FineX (Fine Cross)

Automotive

For transparent display applications, the high brightness from self-emission enhances information visibility and provides new in-car entertainment options.

IHUD (Head-Up Display)

IIn-car entertainment
