FineX (Fine Cross) Technology
FineX (Fine Cross) Technology
Transparent Conductive Film Technology
FineX and FineX Pronounced Fine Cross logo are trademarks or registered trademarks of Panasonic Holdings Corporation in Japan and other countries.
I01

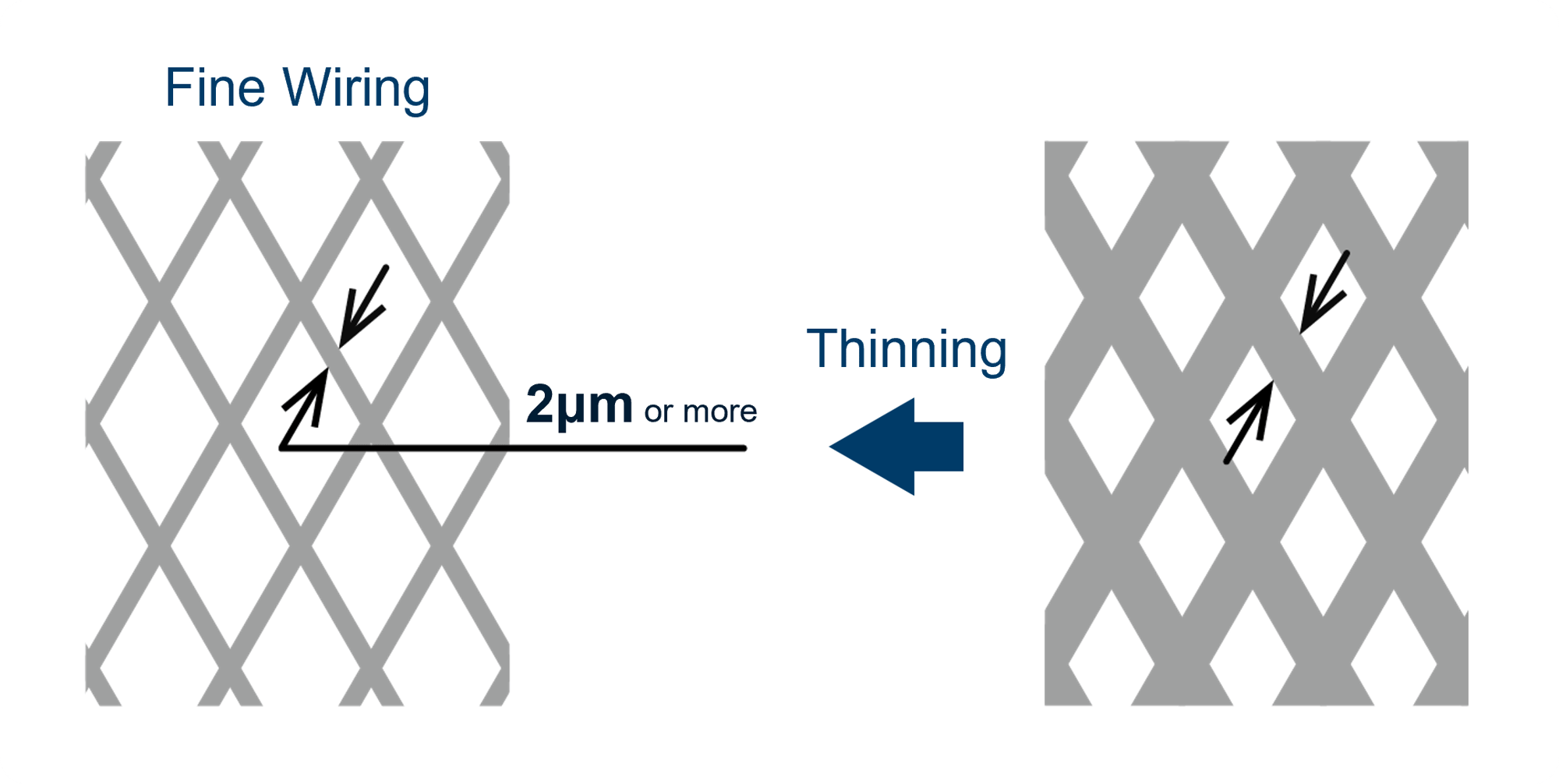

Fine Wiring
Panasonic's proprietary process has enabled fine wiring widths of 2um or more.
I02

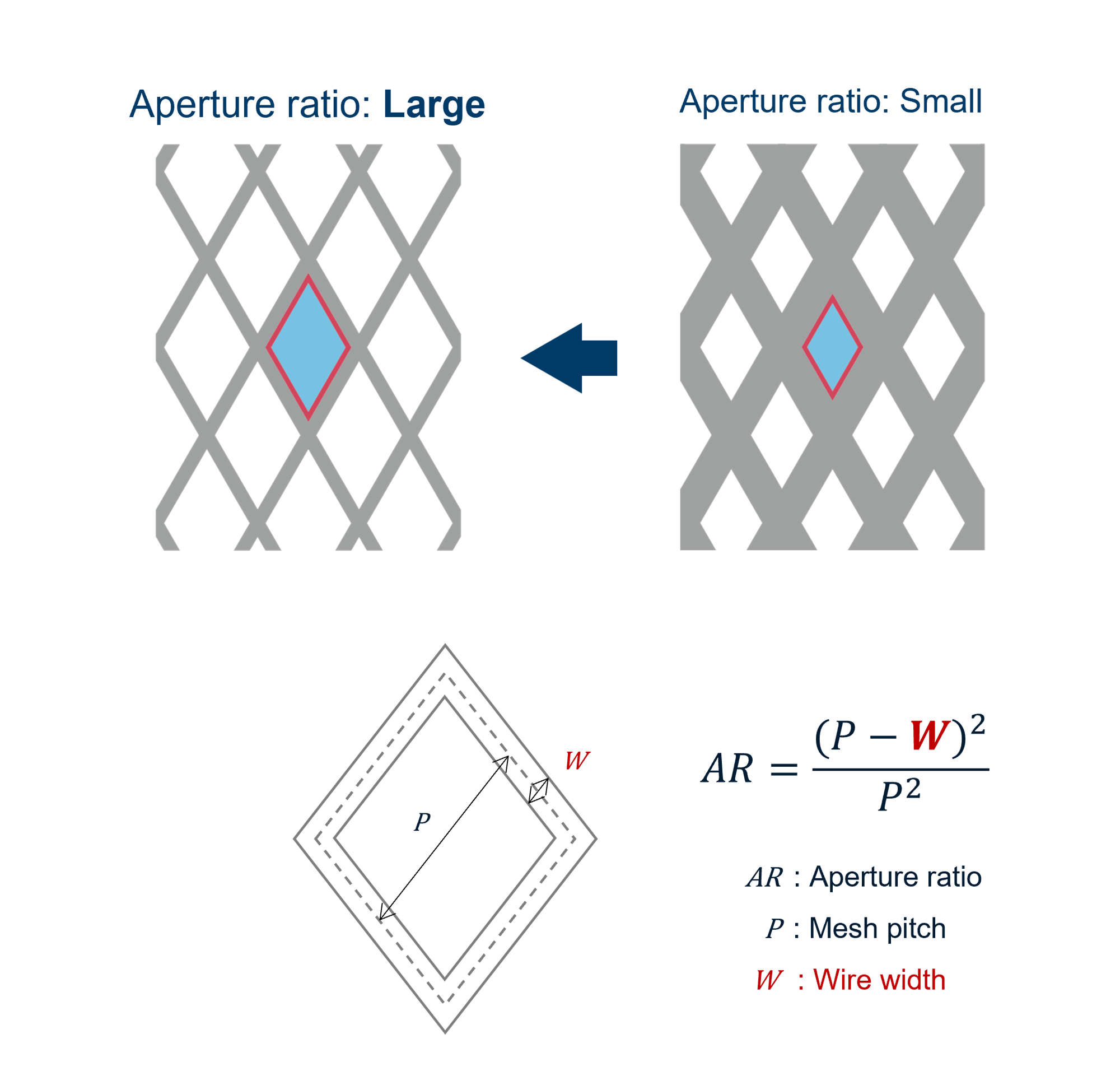

High Aperture Ratio
Wire thinning significantly enhances the aperture ratio.
Because metal obstructs light, reducing the width of the metal wiring leads to an increased aperture ratio.
The aperture ratio is directly proportional to transmissivity.
As a result, Panasonic's Transparent Conductive Film, FineX (Fine Cross), can achieve high levels of transmissivity.
I02
High Aperture Ratio
Wire thinning significantly enhances the aperture ratio.
Because metal obstructs light, reducing the width of the metal wiring leads to an increased aperture ratio.
The aperture ratio is directly proportional to transmissivity.
As a result, Panasonic's Transparent Conductive Film, can achieve high levels of transmissivity.
I03

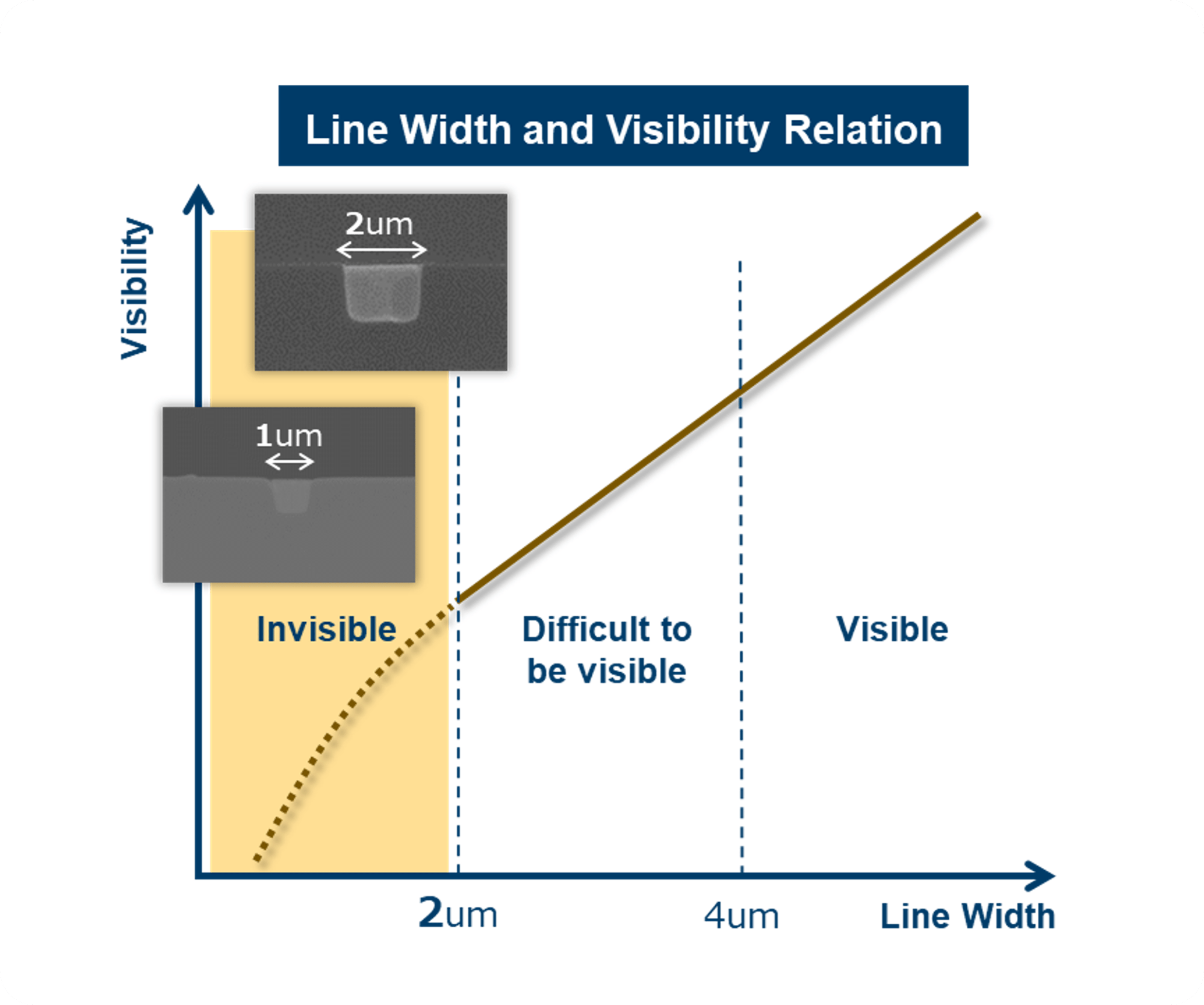

Visibility of Wiring Lines
Metal wiring lines can be visible due to light reflecting off the metal, especially if the lines are not thin enough.
However, in Panasonic’s Transparent Conductive Film FineX (Fine Cross), the wiring line width is 2 micrometers or more, rendering the mesh pattern invisible to the human eye.
I03
Visibility of Wiring Lines
Metal wiring lines can be visible due to light reflecting off the metal, especially if the lines are not thin enough.
However, in Panasonic’s Transparent Conductive Film, the wiring line width is 2 micrometers or more, rendering the mesh pattern invisible to the human eye.
I04

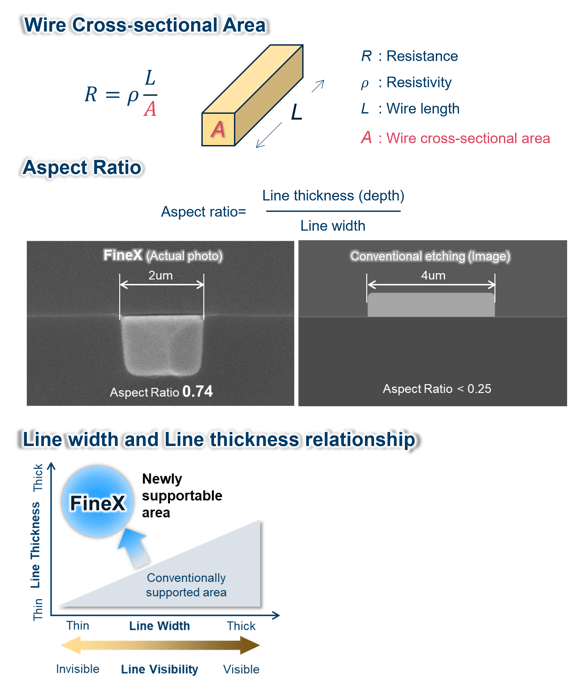

Wiring with High Aspect Ratio
The resistance value of a wire is inversely proportional to its cross-sectional area. To maintain a low resistance, it is necessary to increase the cross-sectional area.
Panasonic’s Transparent Conductive Film, FineX (Fine Cross), is produced using a proprietary process that features wiring lines with a high aspect ratio. This design increases the cross-sectional area in the depth direction while keeping the line width fine.
As a result, FineX achieves fine wiring, which promotes high transmissivity and low resistance.
I04
Wiring with High Aspect Ratio
The resistance value of a wire is inversely proportional to its cross-sectional area. To maintain a low resistance, it is necessary to increase the cross-sectional area.
Panasonic’s Transparent Conductive Film, is produced using a proprietary process that features wiring lines with a high aspect ratio. This design increases the cross-sectional area in the depth direction while keeping the line width fine.
As a result, Transparent Conductive Film achieves fine wiring, which promotes high transmissivity and low resistance.
